[KB8180] Network configuration requirements for allowing clients to connect to ESET PROTECT On-Prem remotely

• Allow both internal and external (remote) clients to check in to a central ESET PROTECT On-Prem server
• Requirements
• Network configuration steps
• Example scenario

Requirements

• External clients must be able to communicate with the ESET PROTECT On-Prem server on port 2222
• Internal and external DNS servers must be configured to point to the correct IP address of the ESET PROTECT On-Prem server based on where the client is located

Network configuration steps

1. Create a NAT rule on your firewall/router that points traffic received on port 2222 TCP to the internal IP address of your ESET PROTECT On-Prem server.

2. Add a new DNS record on your internal DNS server that points to the ESET PROTECT On-Prem server (in the example below, a record would be created pointing avserver.example.com to 192.168.0.123).

3. Add a new DNS record via your domain name registrar that will allow external clients to locate the external IP of your ESET PROTECT On-Prem server.

4. Verify all necessary ports are open on servers and client workstations.

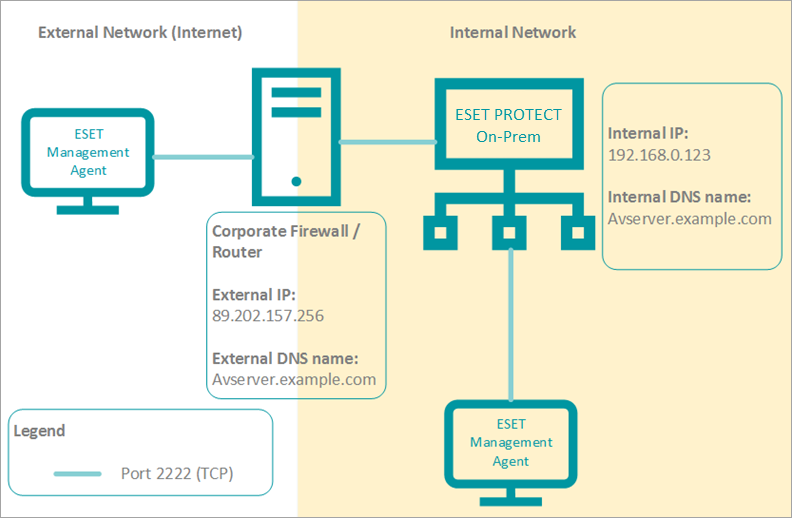

Example scenario

In the example below, the external IP of the Corporate Firewall/Router is 89.202.157.256. The corporate edge device is set to forward traffic on port 2222 to the ESET PROTECT On-Prem server. Therefore, example.com will point avserver.example.com to 89.202.157.256 so that clients external to the corporate network can communicate with the ESET PROTECT On-Prem server.
