[KB5901] Deploy and install ESET Security Management Center VM for Microsoft Azure


ESET business product in Limited Support status

This content applies to an ESET product version that is currently in Limited Support status and is scheduled to reach End of Life status soon.

For a complete list of supported products and support level definitions, review the ESET End of Life Policy for business products.

Upgrade ESET business products.

Getting Started with ERA: Step 2 of 6
Prerequisites required to deploy and install ESMC VM for Microsoft Azure

Complete each prerequisite before deploying and installing:

  1. Log in to your Microsoft Azure account. You can access the Azure portal at http://portal.azure.com/.

  2. Search for ESET Security Management Center in the Azure Marketplace.

Figure 1-1
Click the image to view larger in new window

  1. Review the available information and click Create.

Figure 1-2
Click the image to view larger in new window

  1. Complete the required fields and create your VM (Select your VM size based on the sizing table).

Figure 1-3
Click the image to view larger in new window

Your VM must have a public DNS record

Your VM must have a public DNS record or fixed public IP address. Failure to use a public DNS or fixed IP can prevent your endpoints from connecting to the ESET Security Management Center.

  1. Download the RDP file and connect to your VM.
  2. After connecting to your VM, ESET Security Management Center Setup will appear. Choose a Language for ESET Security Management Center and click Next to continue the installation.
    Install later

    If you accidentally closed the setup window, or you want to install later, run the installation from Command Prompt using the following command:
    C:\EsetSetup\Setup.exe --mode azure

Figure 1-4

  1. Review the End-user license agreement and click Next.

  2. Click Install.

Figure 1-5

  1. Microsoft SQL Express will be installed in the background. When the installation completes, the ESET Security Management Center Server Setup window will appear. Click Next to continue.

Figure 1-6

  1. Click Next to set up a database connection.

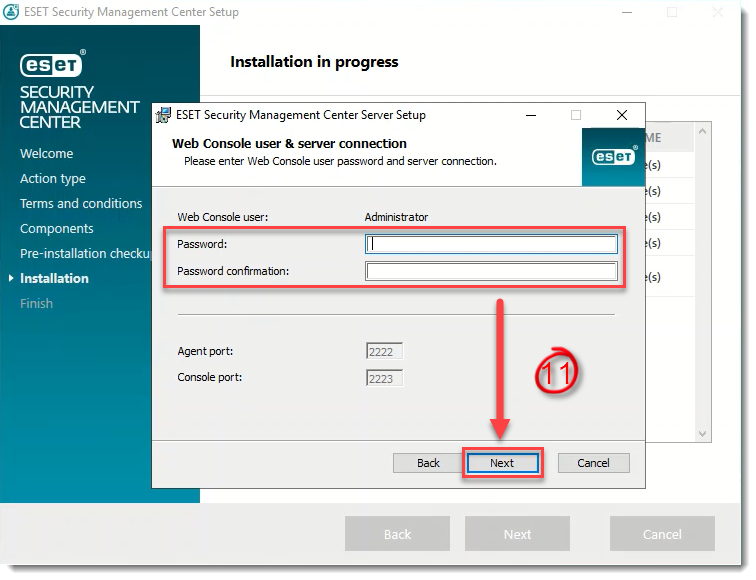

  2. Type a strong password you will use to log into Web Console and server (required when deploying ESMC Agents) into the Password and Confirm Password fields. Make sure to record this password — you will need to use it later — and then click Next.

Figure 1-7

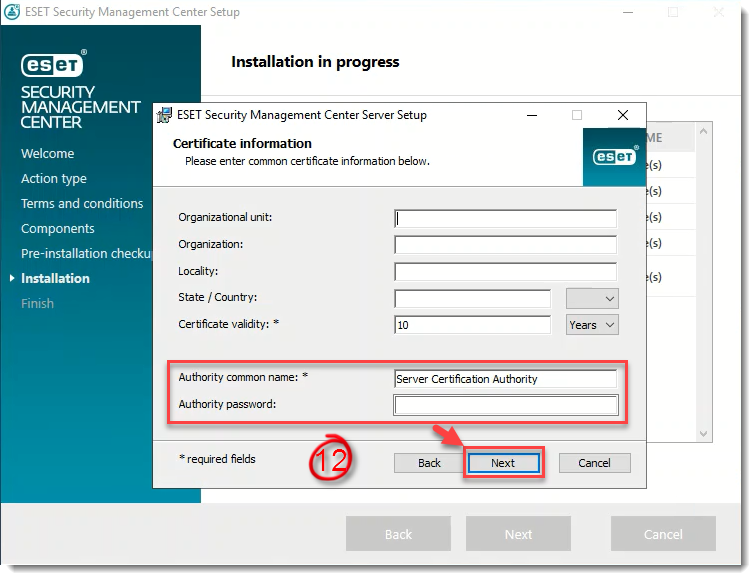

  1. Create a Certificate Authority for ESET Security Management Center. Optionally, specify additional information about the certificate (this is not mandatory). You can type your name or your server hostname (for example yourCustomName.westus.cloudapp.azure.com) to the Authority common name field. You can leave the Authority password field empty. However, if you choose to type or copy/paste in a password, be sure to remember it. Click Next.

Figure 1-8

  1. Type or copy/paste your License Key into the blank field or leave Activate later selected and click Next.

Figure 1-9

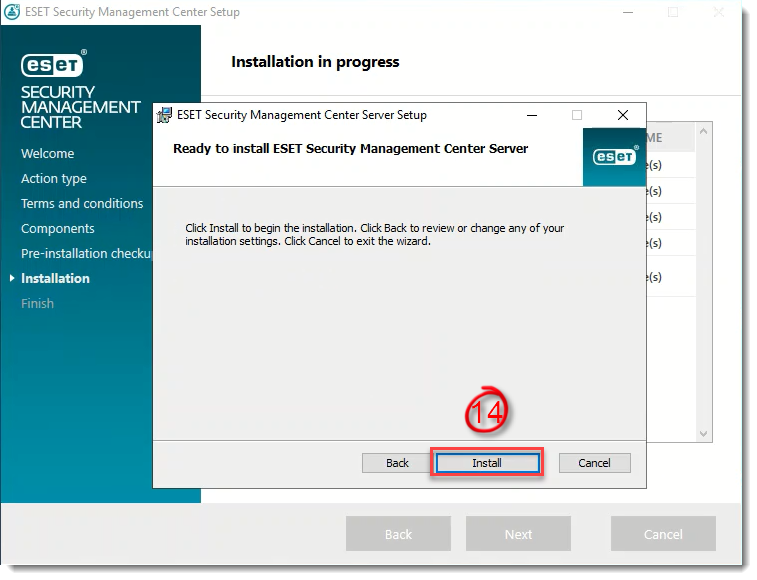

  1. Click Install to continue.

Figure 1-10

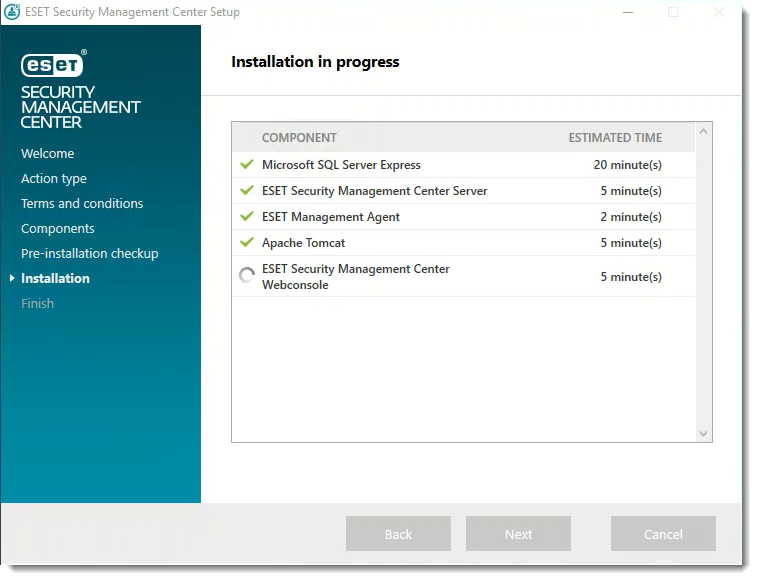

  1. ESMC Server, ESMC Agent, Apache Tomcat and ESMC Web Console will be installed automatically.

Figure 1-11

  1. When the installation is complete, the ESET Security Management Center Server installation was successful message will be displayed along with your ESMC Web Console URL address. Click the URL to open the Web Console, or click Finish.
Opening ESET Security Management Center Web Console remotely

Web Console can be accessed from anywhere using the IP address, or if you have purchased an Azure DNS entry, its DNS address associated with your web ESMC Server URL (for example, https://yourCustomName.westus.cloudapp.azure.com/era/).

A self-signed certificate may not be accepted by your web browser so you will need to add an exception for this SSL certificate.

If you want to use your own trusted certificate, or a certificate signed by any CA, follow the instructions from the article below:

Figure 1-12

  1. When you are able to log in to ESMC Web Console with the password you created in step 12, ESET Security Management Center is installed successfully. See Getting to know ESMC Web Console for instructions to begin using ESMC.

Figure 1-13
Click the image to view larger in new window

With ESMC Server successfully installed, the next step in deployment is to locate client computers and deploy the ESMC Agent to client computers using, for example, the Agent Live Installers method. Remember to select the correct VM hostname in the Server hostname (optional) field as shown in the image below:

Figure 1-14
Click the image to view larger in new window

  1. If you are installing ESMC for the first time, proceed to Step 3, add client computers.
