[KB3646] Install ESET Remote Administrator Proxy (6.x)

Issue

  • Install ESET Remote Administrator Proxy
  • Connect client workstations in multiple locations to ESET Remote Administrator Server (ERA Server) using ESETRemote Administrator Proxy (ERA Proxy)

Details

The ESETRemote Administrator Proxy Server (ERA Proxy) can be used on larger networks to help distribute load from client computers to the ESET Remote Administrator Server (ERA Server). For example, an enterprise network (10,000 or more clients) may require multiple instances of ERA Proxy installed on server machines to distribute the network traffic and reduce the load on ERA Server. Additionally, you can use ERA Proxy to manage communication between a remote office that does not have a high-bandwidth link to ERA Server. This configuration offers better communication because the ERA Proxy accepts all communication from local client computers, compiles the data and uploads it to the ERA Server. This configuration can accommodate more clients without compromising network performance.

Solution

A new version has been released

Version 7 of ESET business products were released on August 16, 2018. This article applies to version 6.x and ESET Remote Administrator . For information about what's new in the latest version and how to upgrade, see the following article:

Prerequisites

  • You will need your proxycertificate and certification authorityavailable on the server where you will install ERA Proxy. If you have not already created these certificates, click here for instructions to create a new certificate. To export these certificates, open ESET Remote Administrator Web Console, click Admin Certificates, select the certificate you want to export and click Export.

Figure 1-1

  • You will need your hostname and login credentials for ERA Server to complete the server-assisted installation of the ESET Remote Administrator Agent (ERA Agent), which is required for ERAProxy.

ERA Proxy can be installed from:


Install ERA Proxy from All-in-one installer

  1. On the server where you will install ERA Proxy, click the appropriate link below to download the ERA All-in-one installer:

    32-bit Download 64-bit Download

Linux users

This article covers ERA Proxy installation on Windows. For step-by-step instructions to install ERA Proxy on a Linux server, see the Online Help topic Proxy installation - Linux.

  1. Extract the ZIP file you downloaded in step one (named win32.zip or x64.zip)and open the folder. Double-click Setupand click Runto begin installation. Click Next to start Setup.Select InstallRemote Administrator Proxy and click Next.

Figure 1-2

  1. Read the End-user license agreement, select I accept the terms in the license agreement if you agree and then click Next.

Figure 1-3

  1. The required components are selected by default and we strongly recommend that you leave them selected. Read the descriptions below and select the appropriate additional components based on the requirements for your network:
    • Microsoft SQL Server Express: If the server where you are installing ESET Remote Administrator Proxy cannot access the ESET Remote Administrator Server database, you can install a standalone Microsoft SQL Server Express database on the server where ESET Remote Administrator Proxy is installed.
    • Rogue Detection Sensor: This will install ESET Rogue Detection Sensor, a component that helps locate unmanaged computers on your network so that you can deploy resources to allow for their management via ERA.

    Click Install to begin installation, if you are usingERA 6.3or earlier, Next may be shown where Install is shown here.

Figure 1-4

  1. Click Next to begin installation. If you chose to install Microsoft SQL Server Express, there may be a delay while that component is installed.

Figure 1-5

  1. Click Next.

Figure 1-6

  1. To configure your connection with the ERAServer, type the IP address of the server where ERA Server is located into the Server host field and then click Next.

    ERA 6.3.x users: selectConfigure nowfirst,enter the IP address of the server where ERA Server is located into the Server host field and then click Next.

Figure 1-7

  1. Click Browsenext to Peer certificate, navigate to your peer certificate for ERA Proxy and click Open. If your peer certificate requires a password to use, type the password into the Certificate password field.
  1. Click Browsenext to Certificationauthority, navigate to your certificationauthority for ERA Proxy andclick Open. Click Next when you have loaded your peer certificate and certificationauthority.

Figure 1-8

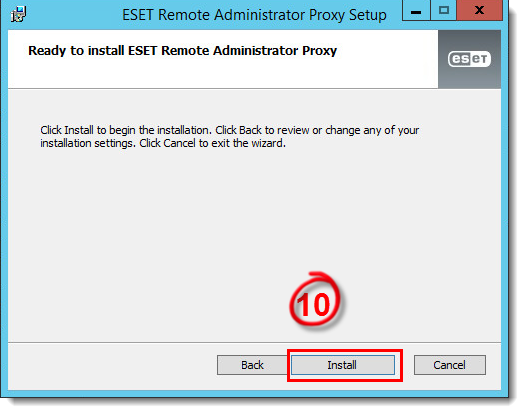

  1. Click Install.

Figure 1-9

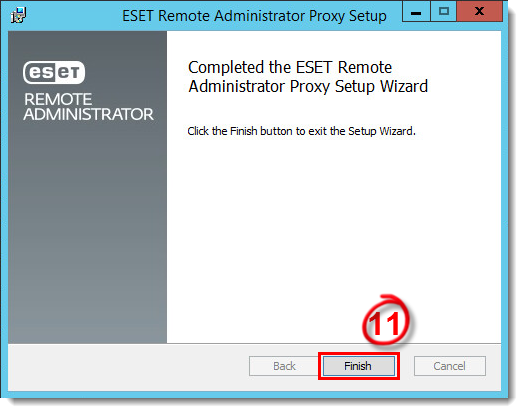

  1. Click Finish.

Figure 1-10

  1. If ERA Agent is not already installed, ERA Proxy installer will automatically install it. Click here for step-by-step instructions to install ERA Agent.
  2. If you chose to install ESET Rogue Detection Sensor, follow the prompts from the ESET Setup Wizard to complete installation for this component.
  3. When installation is complete, ESET Remote Administrator Proxy installation was successful will be displayed. Click Finish.

Figure 1-11


Install ERA Proxy using the Standalone installer

  1. On the server where you want to install ERA Proxy, click the appropriate link below to download the ERA Proxy installer:

32-bit Download64-bit Download

  1. Open the downloaded installer.ClickNextto begin installation.

Figure 2-1

  1. Read the End-user license agreement, selectI accept the terms in the license agreementif you agree and then clickNext.

Figure 2-2

  1. If you are installing on a cluster, selectThis is cluster install. Optionally, you can clickChange...to select a different location to install. ClickNext to continue the installation.

Figure 2-3

  1. Select which user account will be used to run ESET Remote Administrator Server Service. If you chooseCustom accountyou must enter the Domain & username and Passwordfor that account. ClickNext.

Figure 2-4

  1. Set the following parameters for your database connection:
    • Database - Select which type of database you use
    • ODBC driver - Select which ODBC driver you have installed
    • Database name - choose a name for thedatabase the ERA Proxy will use. This can be new name or name of dedicated database you have created in advance.
    • Hostname - IP address or name of the computer where the database server is installed (use localhost if the database is installed locally)
    • Port - Port determines which port will be used to connect the database on the database host. Port number is pre-selected according to the database. If this port is firewalled on thehost computerthe port number should be changed or the firewall settings modified.
    • Username - Type the name of the database user. You can use one of following:
      • The database user you have already created (How do I create a dedicated user?)
      • The database administrator's account and a newly created dedicated user for the ERA database
      • Other database users with sufficient privileges and a newly createddedicated userfor the ERA database
      • The database administrator's account (not recommended)
    • Password - Enterthe password for the selected user

Figure 2-5

  1. If you are using the default account,continue tothe next step. To use another account, do one of the following:
    • Create a new user- set the username andPassword and then clickNext
    • Select an existing user - enter the credentials for the user you want to use and clickNext

Figure 2-6

  1. Select a proxy communication port. By default, port 2222 is used. Click Next to continue.

Figure 2-7

  1. Enter the hostnamefor your ERA Server.By default, Proxy port is set to2222, only change this value if your system uses custom settings.ClickNextto continue.

Figure 2-8

  1. Export the appropriate certificates and certificate authorities from ERA, enter them and then click Next.
    • Peer certificate - your proxy certificate, a .pfx file
    • Certificate password - the password you entered when creating your proxy certificate. If you did not configure a certificate password, leave this field blank.
    • Certification authority - your certification authority, which you will useto sign the current server certificate, is available as a.derfile.This is only required for unsigned certificates.

Figure 2-9

  1. Click Changeto select thefolder whereERA Proxy will be installed, or leave the pre-defined folder selected.ClickNextto continue.

Figure 2-10

  1. When you are finished making changes, click Install to begininstallation.

Figure 2-11

  1. After the installation process is complete, click Finish to close the installer.
